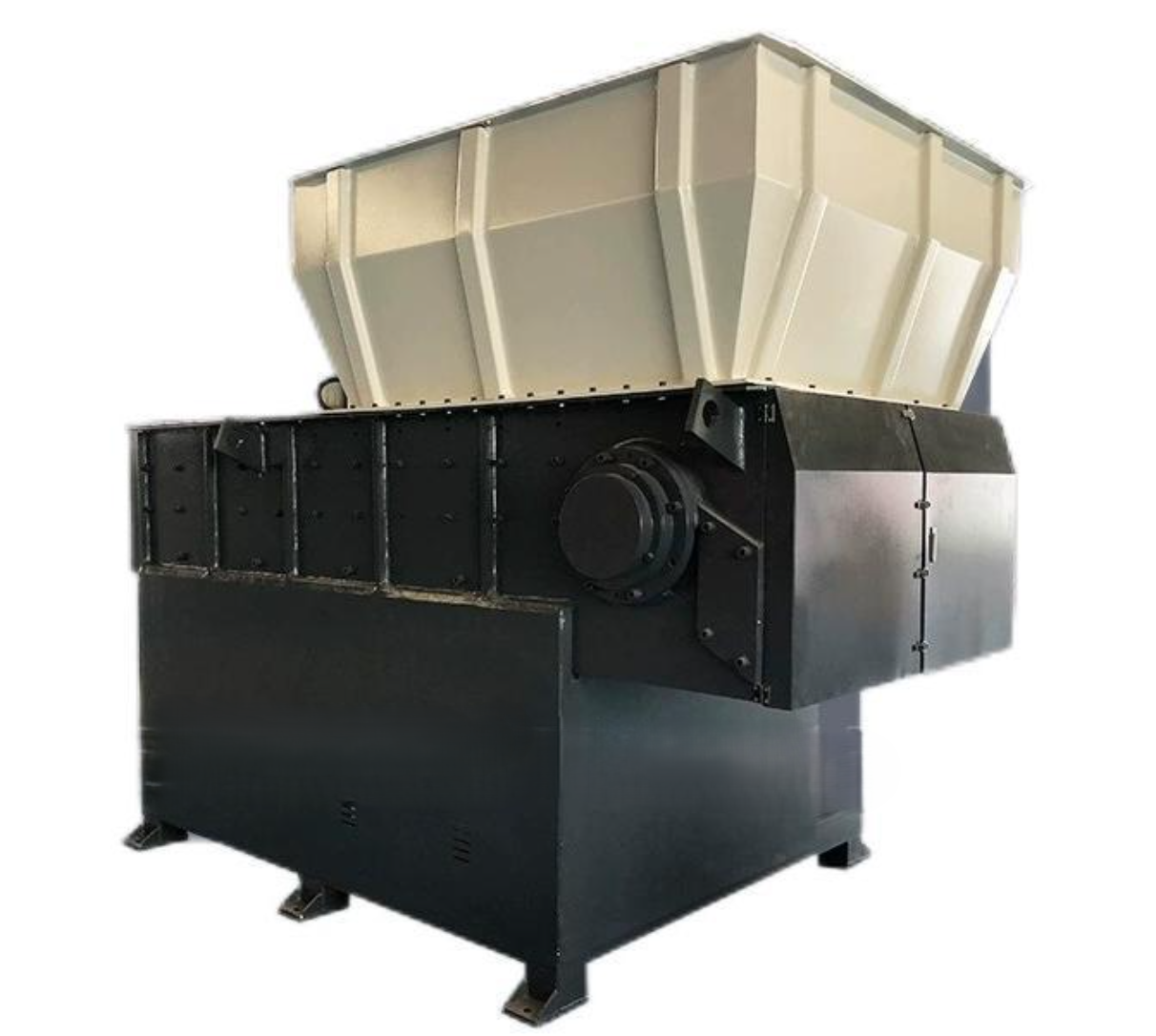

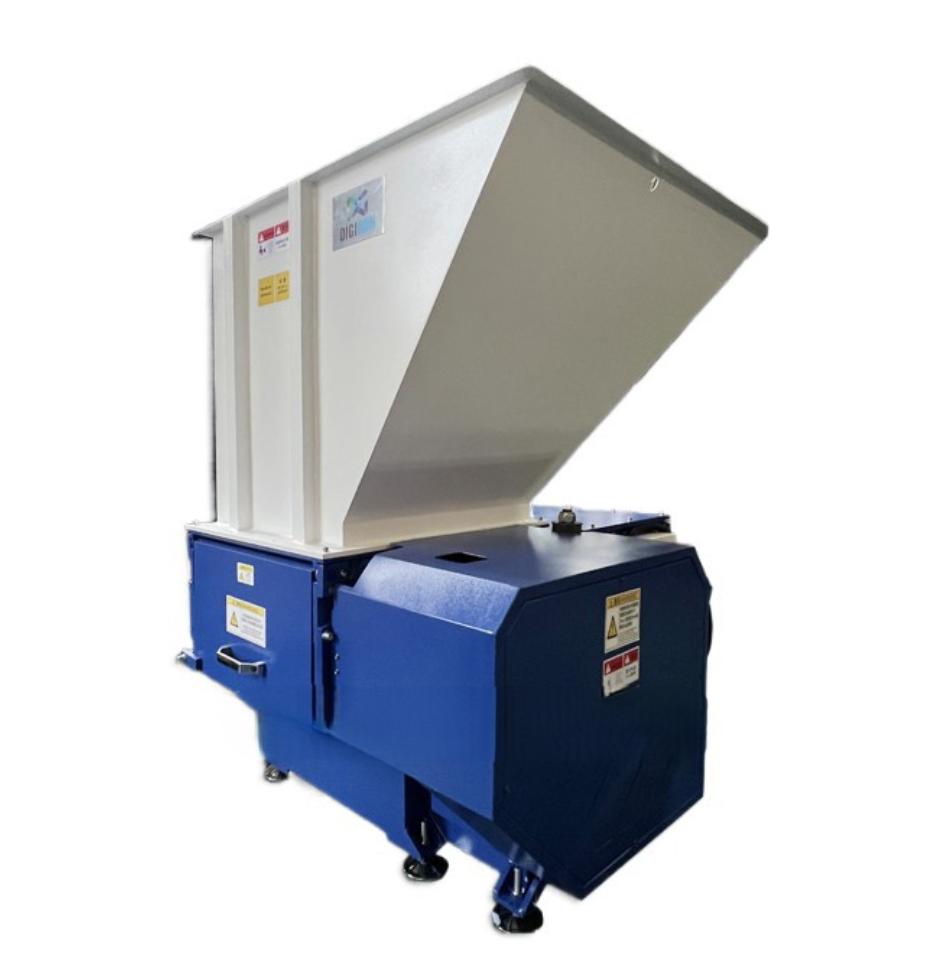

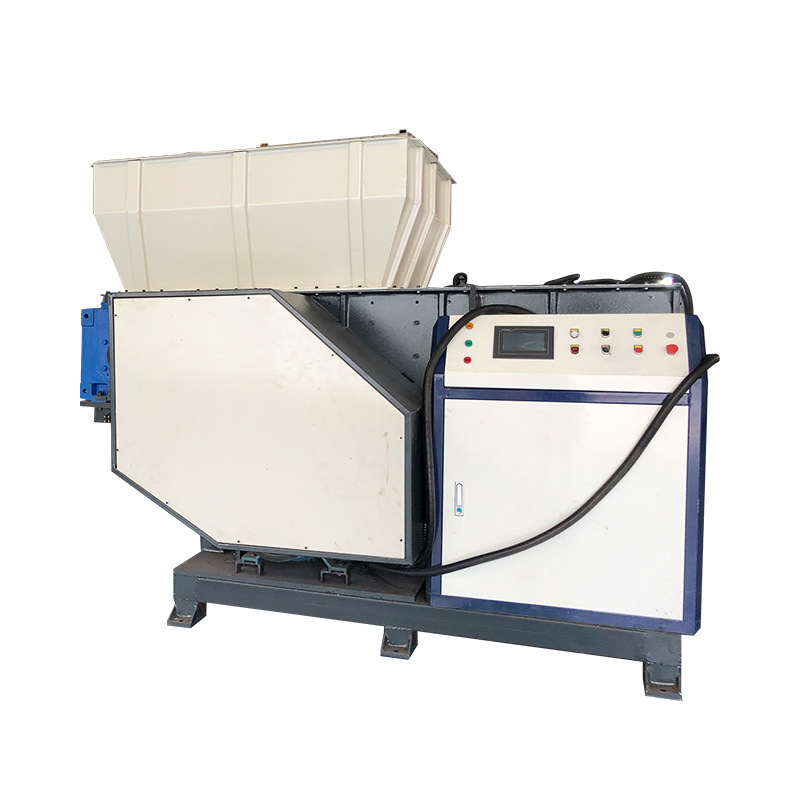

ANSN Series - Single Shaft Shredder
ANSN Series - Single Shaft Shredder - Image 2
ANSN Series - Single Shaft Shredder - Image 3
ANSN Series - Single Shaft Shredder - Image 4

ANSN Series – Single Shaft Shredder

Detailed applicable materials:

  • Plastics – Mouldings, Purging/Lump, Profiles, Films etc.
  • Timber/Wood – Pallets, Joiners Waste, Green Waste etc.
  • Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
  • Copper– Household, Automotive, Telecoms and Industrial Cables including S.W.A
  • Aluminum – Used Beverage Cans (UBC’s), Swarf, Cables etc.
  • Textiles – Carpet (Rolls & Tiles), Garments etc.
  • Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock etc.
  • Foam – Production Waste, Insulation Materials, Product Fillings etc.

Description



The ANSN series single axis shredder is a small and medium-sized crusher suitable for processing various materials into uniform particle sizes. The generated output products can usually be sold as is or further processed through additional equipment such as granulators, compactors, etc. The throughput is usually between 300kg/hr and 5000kg/hr+, depending on the machine model, material type, screen size, and application.

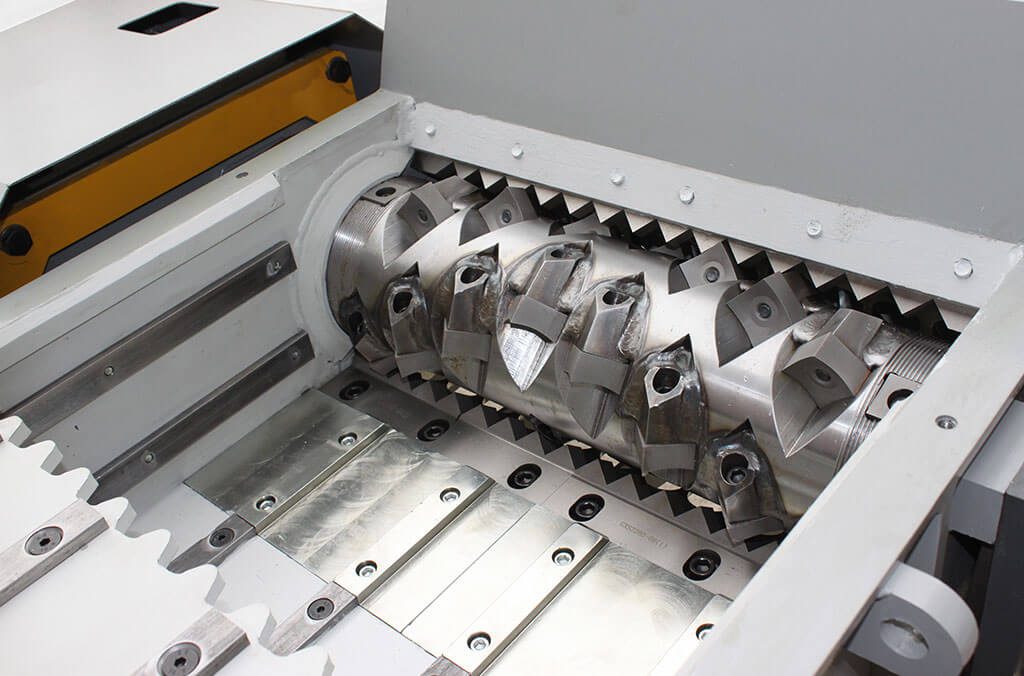

♦ Shaft with a wpecial V-shaped design,so that cutting knife cutting uniform,efficient,energysaving and other characteristics.



♦ Hydraulic push material,suitable for different materials,a wide range of applications.



♦ Energy Efficient + Maximum Cutting Force & Productivity



♦ Efficient shredding of hard solid waste materials such as tires, plastic blocks, plastic pallets, textiles, etc



♦ Tested, Approved and Certified to the applicable CE safety standards

Technical Specifications
Model AN-SN600 AN-SN800 AN-SN1000 AN-SN1200
Rotor rotation diameter 240mm 390mm 420mm 420mm
Rotor rotation speed 80Rpm 80Rpm 80Rpm 80Rpm

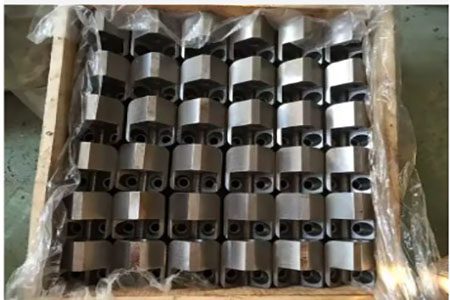

Rotate blade 27pcs 39pcs 49pcs 59pcs
Fixed blade 2 2 4 6
Feed port size 600mm 800 mm 1000 mm 1200 mm
Main power 18.5kw 37 kw 55/75 kw 75/90 kw

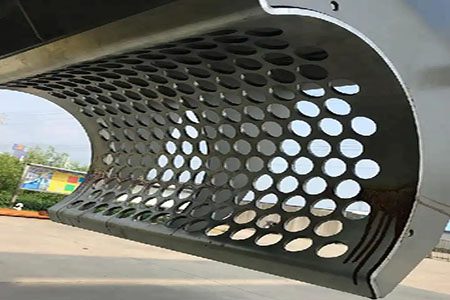

Mesh size 30-100mm(customizable)
Machine weight 2500kg 4600kg 5200kg 6500kg
Dimensions(mm) 1780*1350*1720 2690*1750*2150 2820*1960*2350 3120*2100*2500
