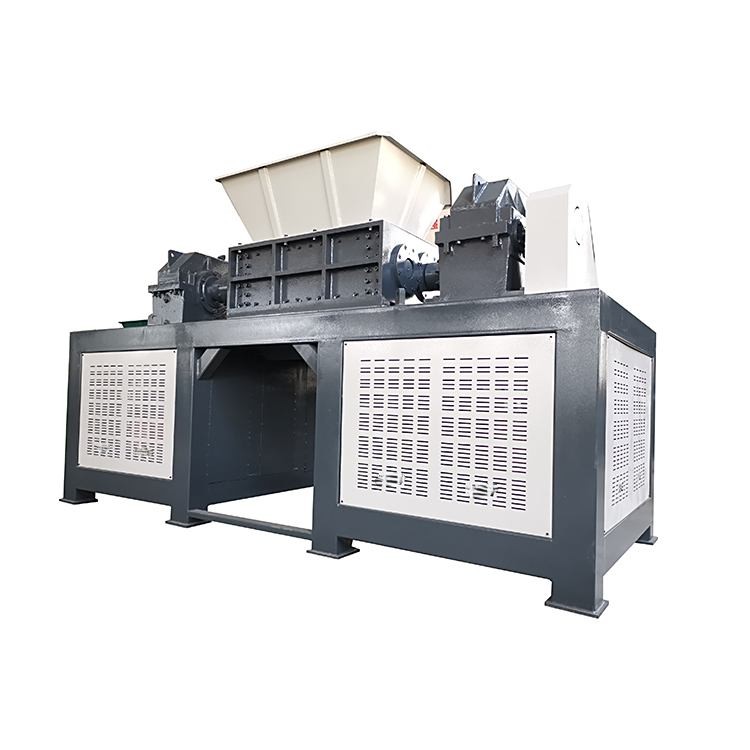

Description

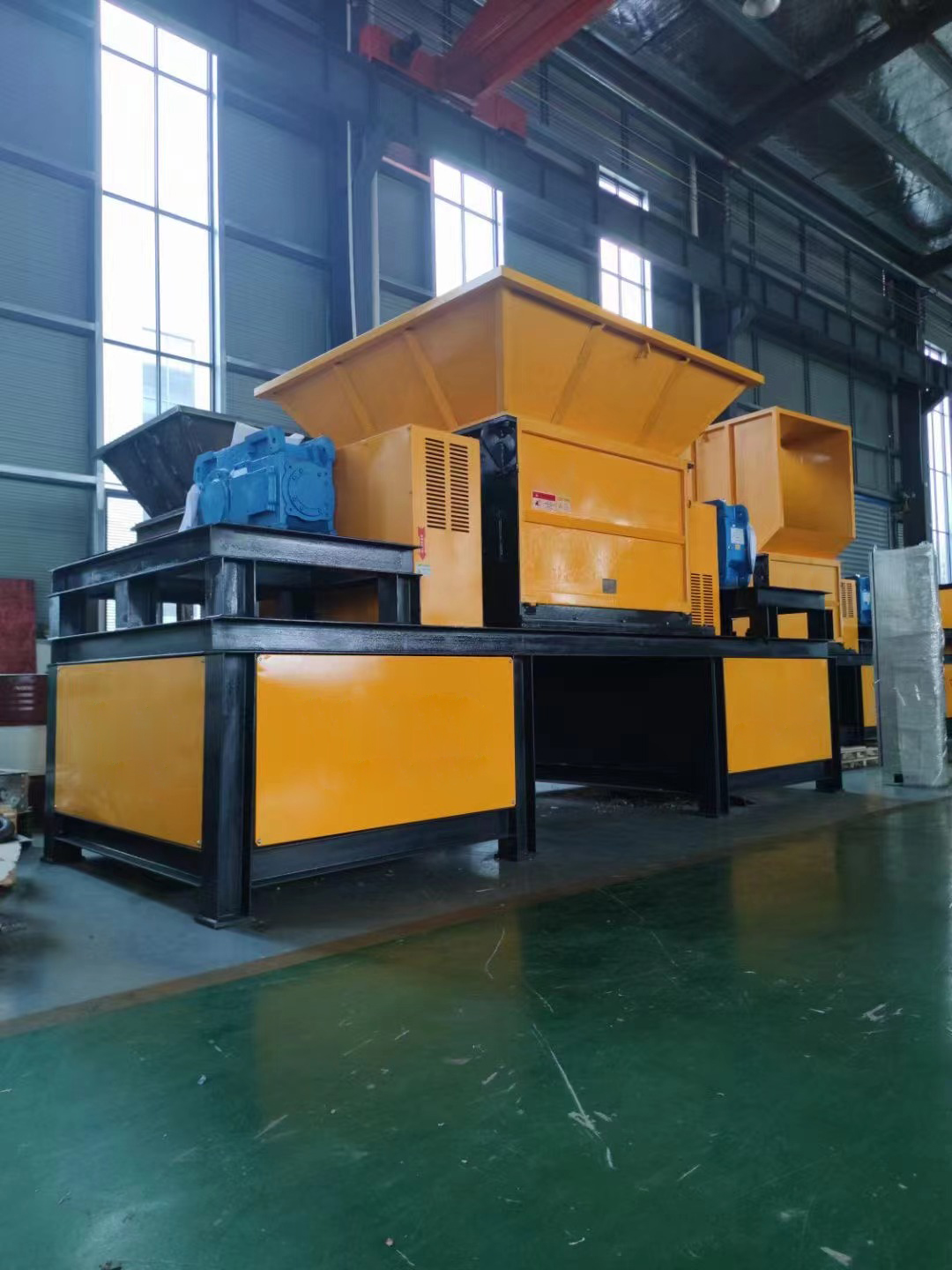

The ANSG series shredder is engineered for tangling waste streams—including films, woven bags, and textiles—and features an anti-tangling design, automatic reversal upon jamming, and a high-torque, low-speed drive system. Offering stable operation and convenient maintenance, it is ideally suited for the shredding and volume reduction of a wide range of high-toughness, lightweight, and bulky waste materials.

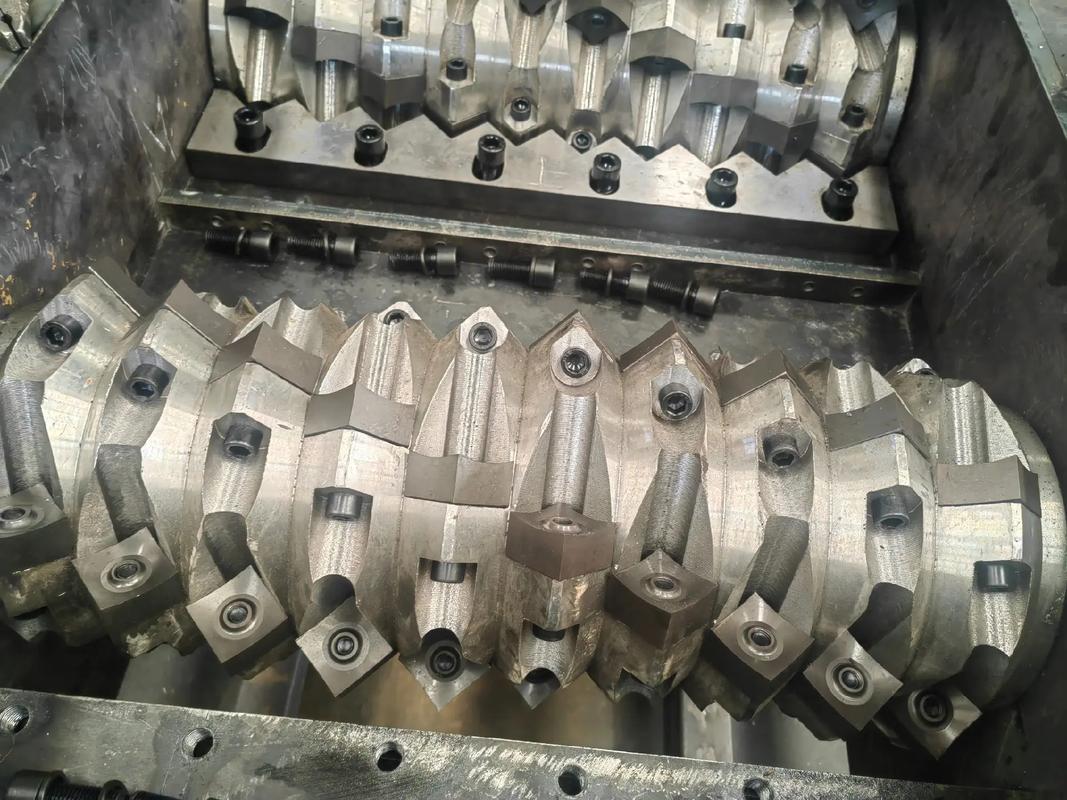

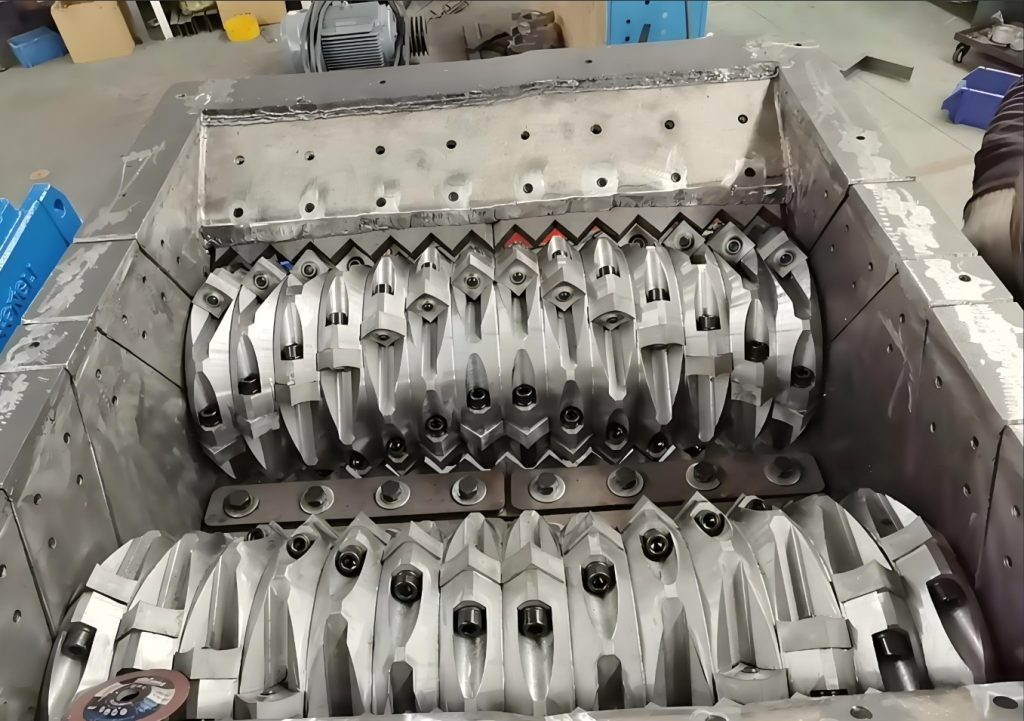

♦ Anti-Tangling Design: Fixed blades automatically scrape away entangled materials, preventing them from wrapping around the cutter shaft.

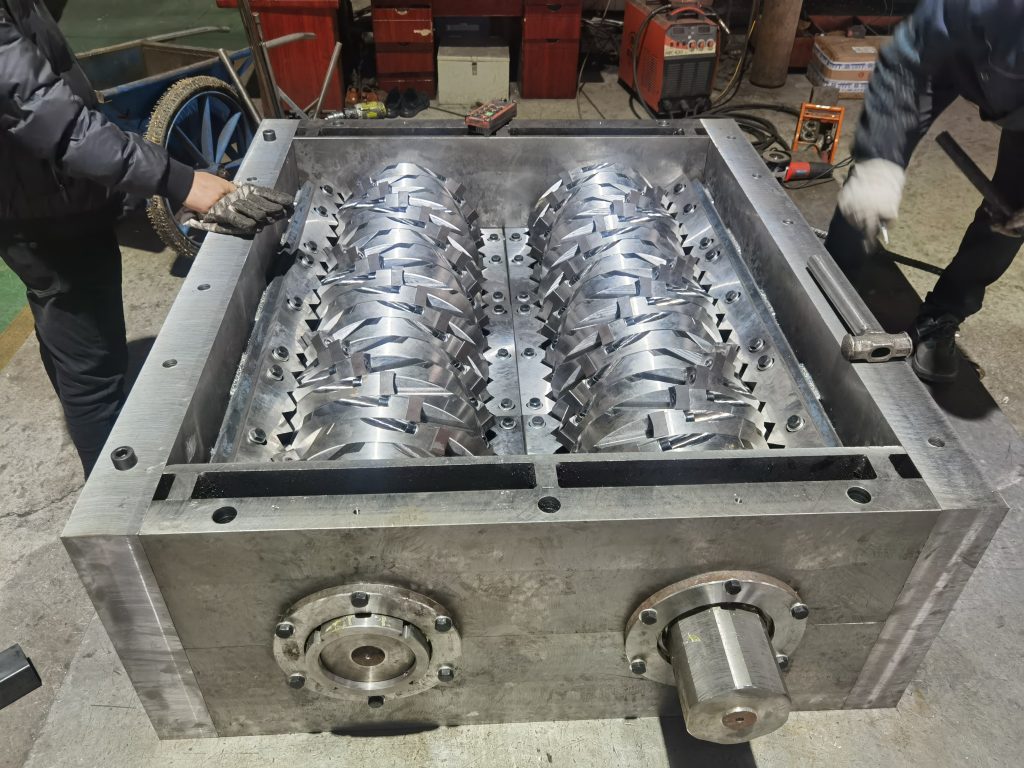

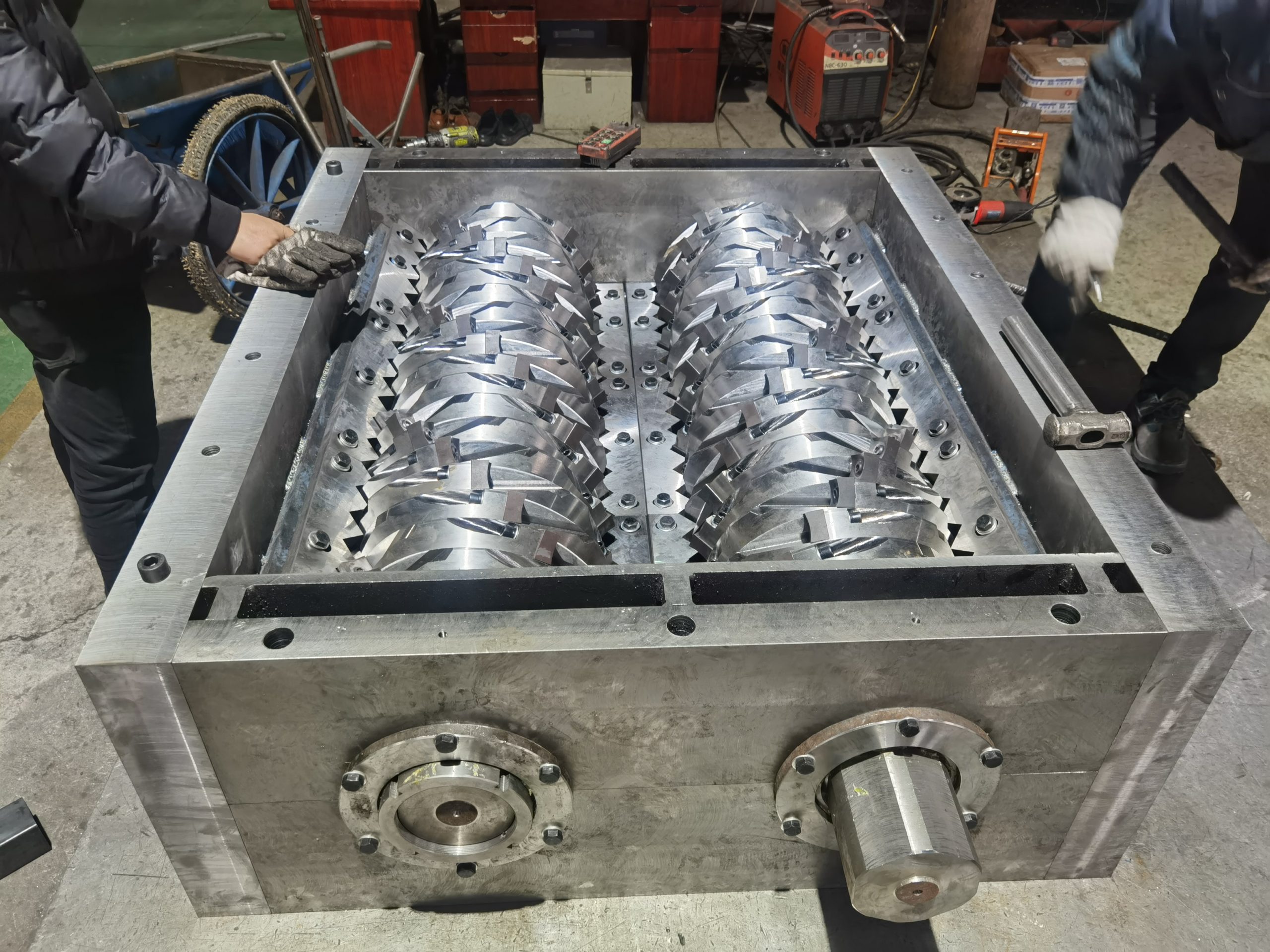

♦ Shearing + Tearing: Dual shafts rotate in opposite directions, ensuring no slippage and no material pushing.
♦ Intelligent Reversal: Automatically reverses to discharge material when jammed, enabling unattended operation.

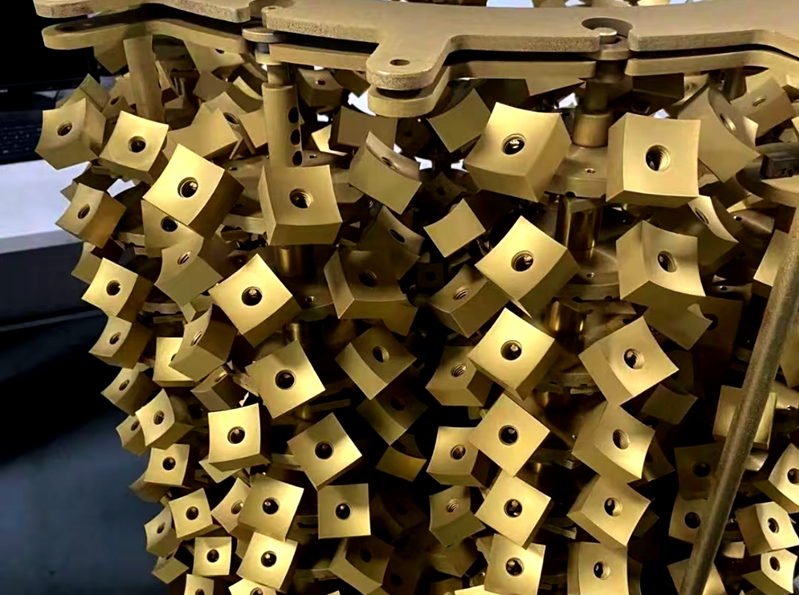

♦ Wear-Resistant Blades: Constructed from high-alloy steel; detachable and replaceable for low maintenance costs.
Technical Specifications
| Model | AN-SG600 | AN-SG800 | AN-SG1000 | AN-SG1200 |
| Rotor rotation length | 600mm | 800mm | 1000mm | 1200mm |
| Rotor rotation speed | 60-75rpm | 60-75rpm | 60-75rpm | 60-75rpm |
| Rotate blade | 88 | 112 | 128 | 146 |
| Fixed blade | 2 | 2 | 4 | 4 |
| Feed port size | 600mm | 800 mm | 1000 mm | 1200 mm |
| Main power | 22 Kw*2 | 37 Kw*2 | 45 Kw*2 | 60 Kw*2 |
| Mesh size | 30-100mm(customizable) | |||
| Machine weight | 3100kg | 4700kg | 6300kg | 9100kg |
| Dimensions(mm) | 3200*1310*2150 | 3660*1500*2200 | 4500*1800*2600 | 4800*2100*2800 |

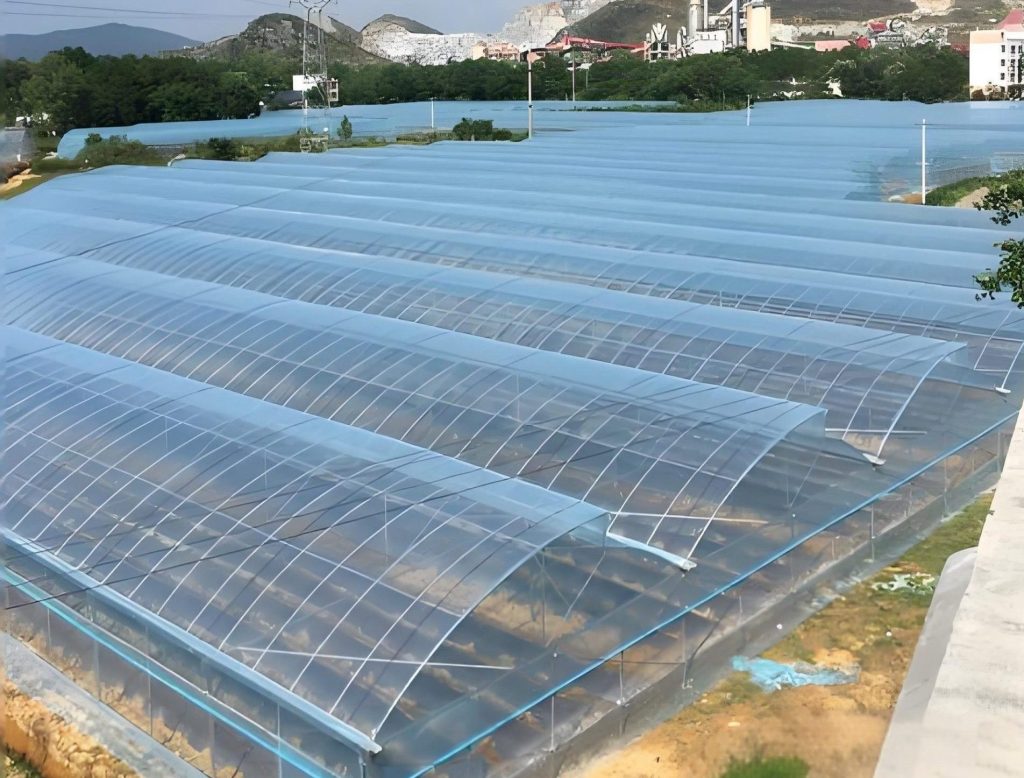

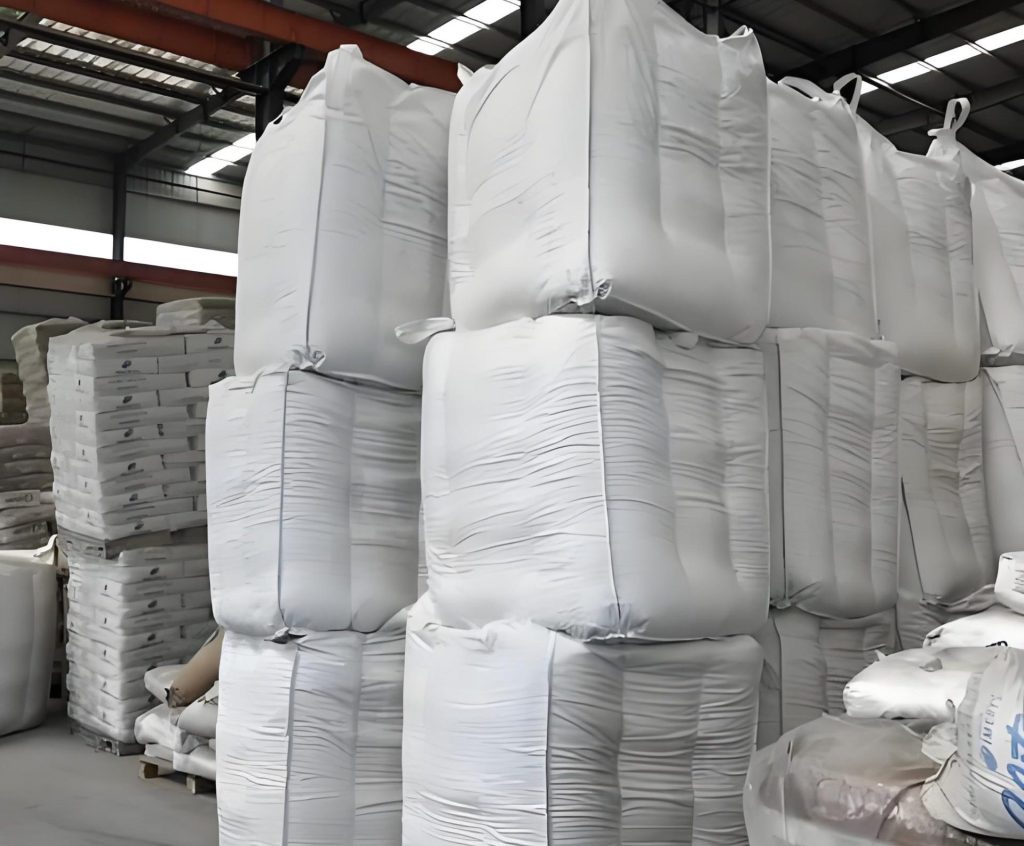

Application
